Foil Shield and Seal

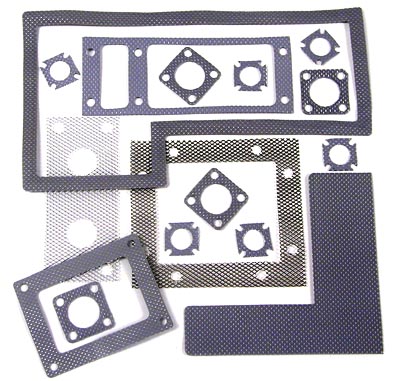

Foil Shield and Seal is a thin sheet EMI/RFI gasket material that consists of a thin expanded metal foil with the openings filled with solid silicone elastomer. This material has very uniform thickness and can be routinely cut into high frequency connector gaskets or piping gaskets with standard tooling. It is also amenable to custom shapes as indicated in the illustration below.

Foil Shield and Seal for conductive shields and environmental seals
Shielding Express Foil Shield and Seal gaskets are available with or without a pressure seal. The basic EMI/RFI shielding material consists of a severely expanded, diamond-pattern-cut Monel sheet with more than 200 contact points per square inch of mating surface area. The material was developed for use where mating surfaces may be uneven with a tolerance up to .003". When an environmental seal is required, the shielding gasket can be provided with openings filled with 40 duro solid silicone elastomer. Recommended compression forces are greater than 30 PSI. Fluorosilicone is utilized in place of the silicon elastomer when solvent resistance is required.

Mechanical Specifications:



.020" thk x 8.00" wide

 (unfilled)
  .020" thk x 8.00" wide (filled)
  .030" thk x 8.00" wide (unfilled)
  .030" thk x 8.00" wide (filled)
  .030" thk x 8.00" wide (filled) (Aluminum Sheet)


Material Specifications:

  Monel:
Aluminum


QQ-N-281
QQ-A-250
  Solid Silicone:
Fluorosilicone
per

ZZ-R-765 Class 2, Grade 40 Color: Gray
MIL-R-25988B, Color blue


Typical Shielding Effectiveness:

  14 KHz  (Magnetic field)  40 dB
  1.0 MHz  (Magnetic field)  50 dB
  18.0 MHz  (Electric field)  100 dB
  1.0 GHz  (Plane Waves)  90 dB


Temperature Range:



Filled gasketing -80 degrees to +500 degrees F
